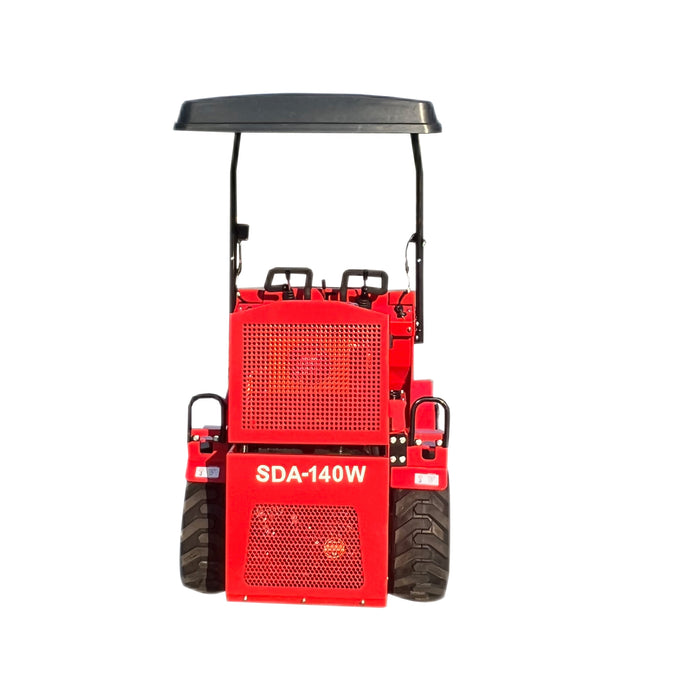

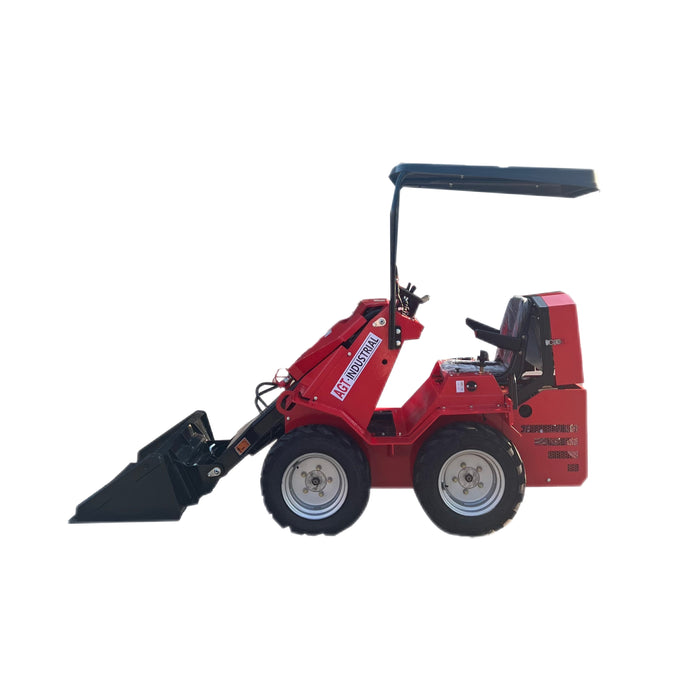

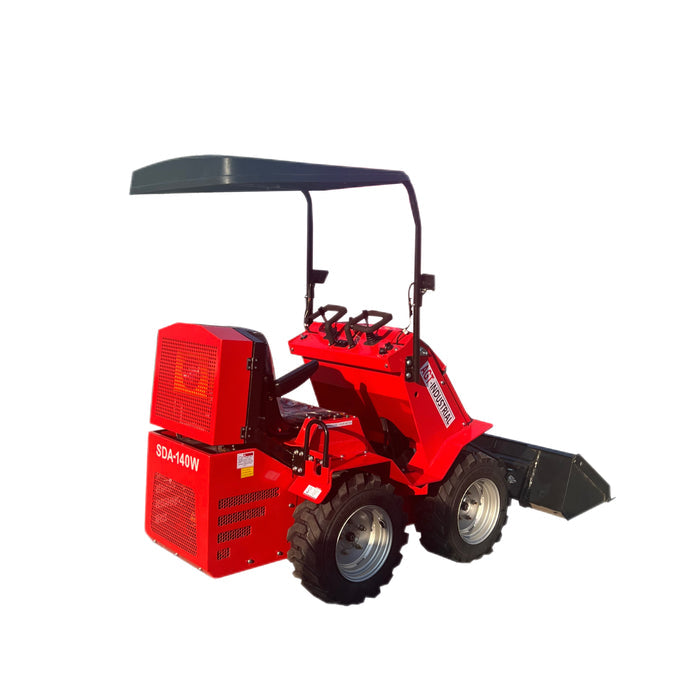

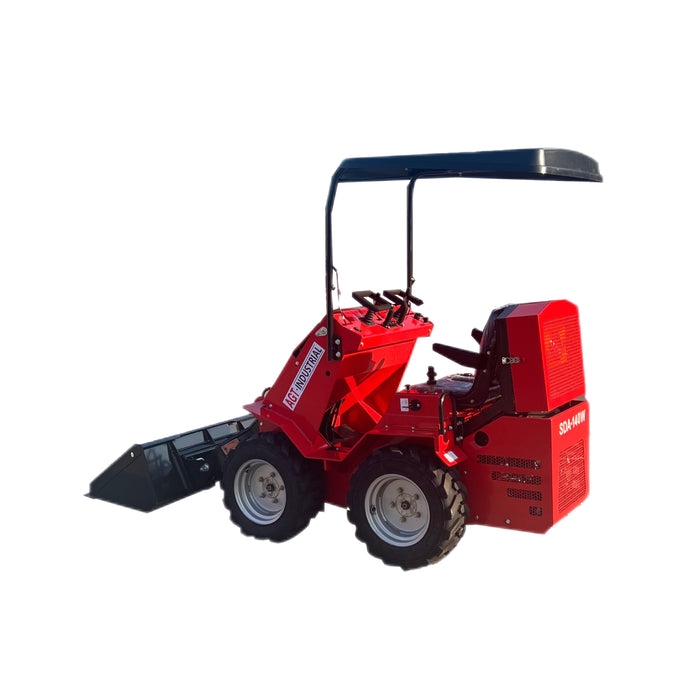

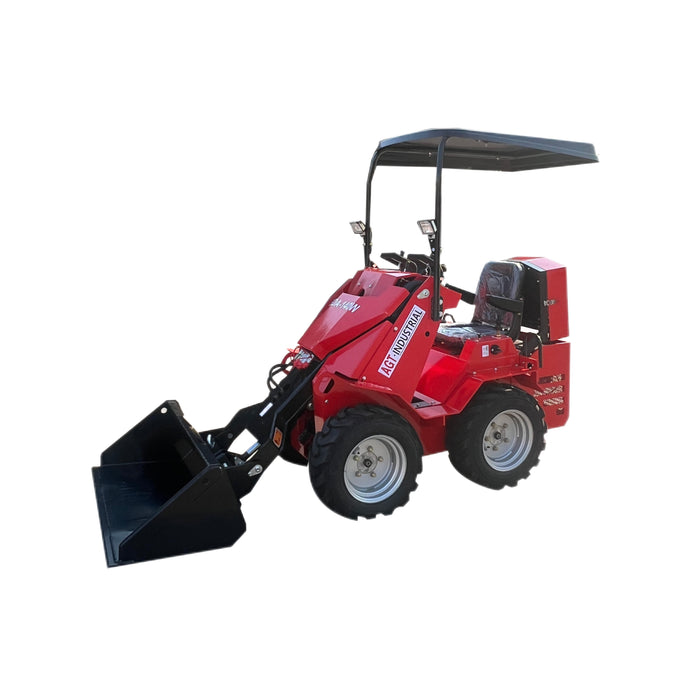

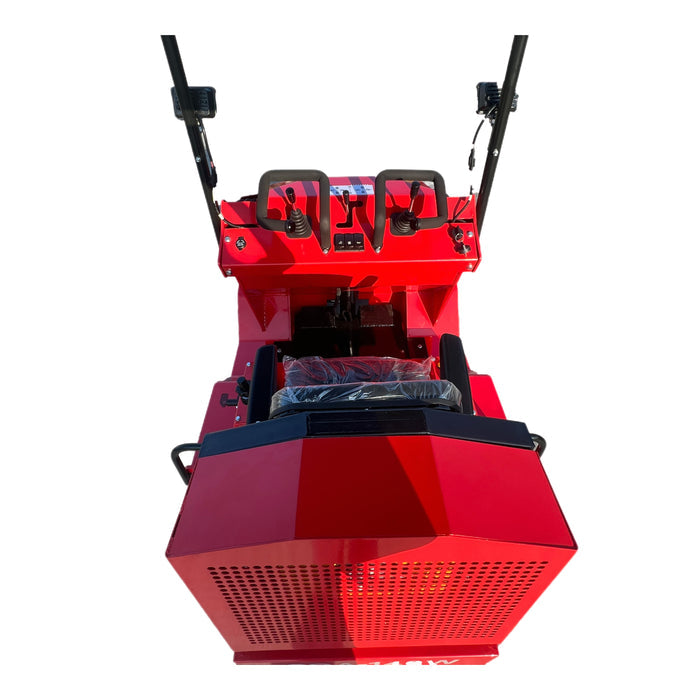

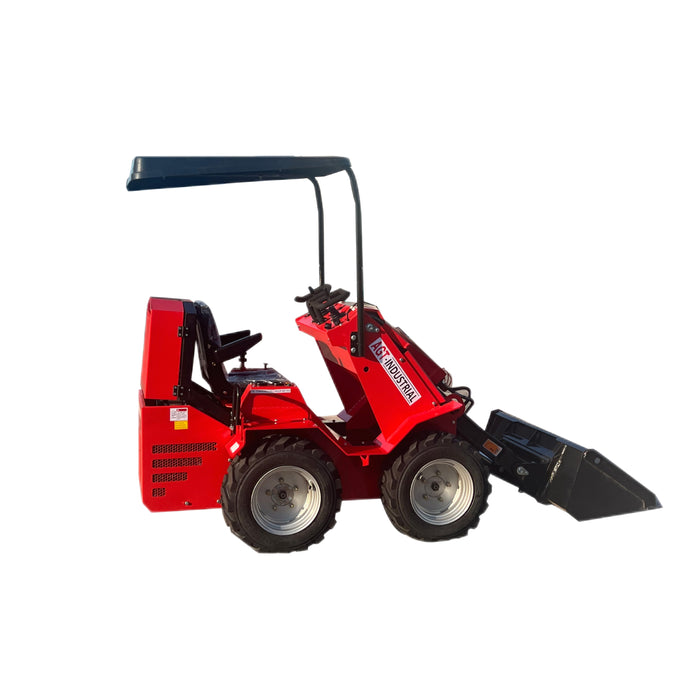

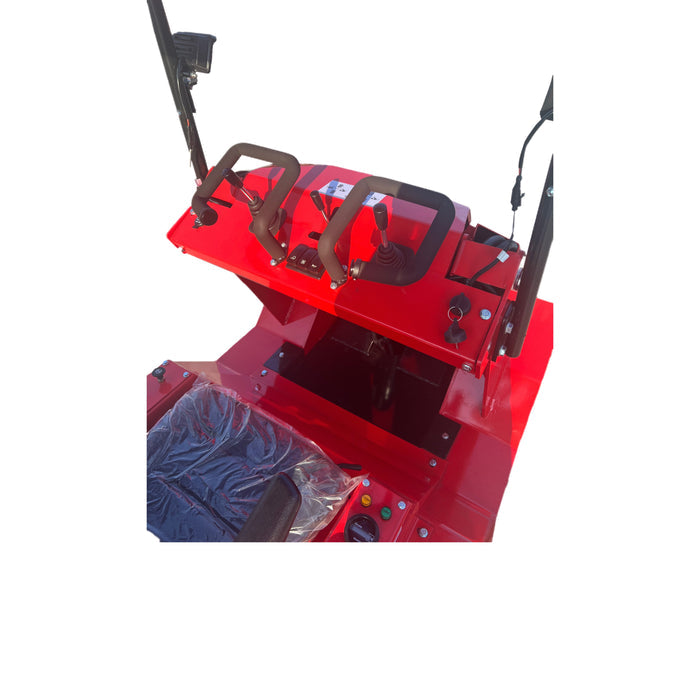

0.8 Ton, Rato Engine Mini Skid Steer | AGT-SDA-140W

Designed for tight-access projects and light material handling. With a compact body, 760 kg operating weight, and 0.15 m³ bucket capacity, the AGT SDA-140W is a nimble and efficient mini skid steer perfect for farms, landscaping, construction sites, and small-scale demolition. Powered by a Rato gasoline engine with fan cooling, this machine delivers 8.6 kW of reliable power and a max working height of 2300 mm.

Its 23x8.5-12NHS wheels provide solid ground clearance, while the compact 990 mm body width allows for easy access through narrow gates and tight areas. Quick-attach ready for a variety of buckets, forks, and auger attachments.

Technical Data:

• Operating Weight: 760 kg
• Engine: Rato (Gasoline, Fan-Cooled)
• Max Power: 8.6 kW
• Fuel Tank: 6.6 L (92# Gasoline)
• Hydraulic Tank: 23 L

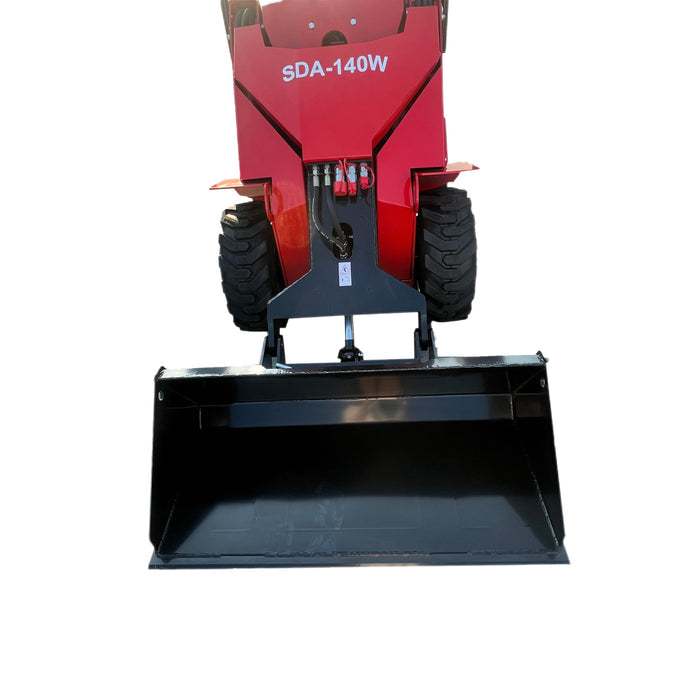

• Bucket Capacity: 0.15 m³
• Max Lifting Force: 220 kg
• Travel Speed: 3 km/h
• Fuel Consumption: 1.1 L/h
• Ground Clearance: 193 mm

Working Range:

• Max Working Height: 2300 mm
• Max Unloading Height: 1687 mm

Dimensions:

• Wheelbase: 775 mm
• Overall Length: 2510 mm
• Overall Width: 990 mm
• Overall Height: 1887 mm
• Bucket Width: 1150 mm
• Wheel Size: 23x8.5-12NHS
