1 Ton, 13.5 HP Gasoline Engine (B&S) Mini Excavator w/ Hydraulic Thumb & Side Swing Boom | AGT-DM12-C

With a compact design, 1-ton operating weight, and a maximum digging depth of 5.79 feet, AGT's lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces. Equipped with a hydraulic thumb and side swing boom.

Manual

Technical Data:

• Operation Weight: 0.959 Ton
• Engine: B&S


• Max Angle: 30 Degree

Dimension

• Operating Weight: 0.9 Ton (1,985 lbs)
• Overall Length: 2,260 mm (89 in)
• Overall Width: 958 mm (37.7 in)
• Overall Height: 2,200 mm (86.5 in)
• Track Size: 180*72*37 (Width*Pitch Length*Link)

Working Range

• Max Digging Depth: 1,764 mm (69.5 in)
• Max Digging Height: 2,670 mm (105 in)
• Max Dumping Height: 1,900 mm (75 in)
• Max Reach at Ground: 3,400 mm (134 in)
• Dozer Blade Width: 910 mm (36 in)
• Dozer Blade Height: 200 mm (8 in)

Features

• Swing Boom
• Hydraulic Thumb

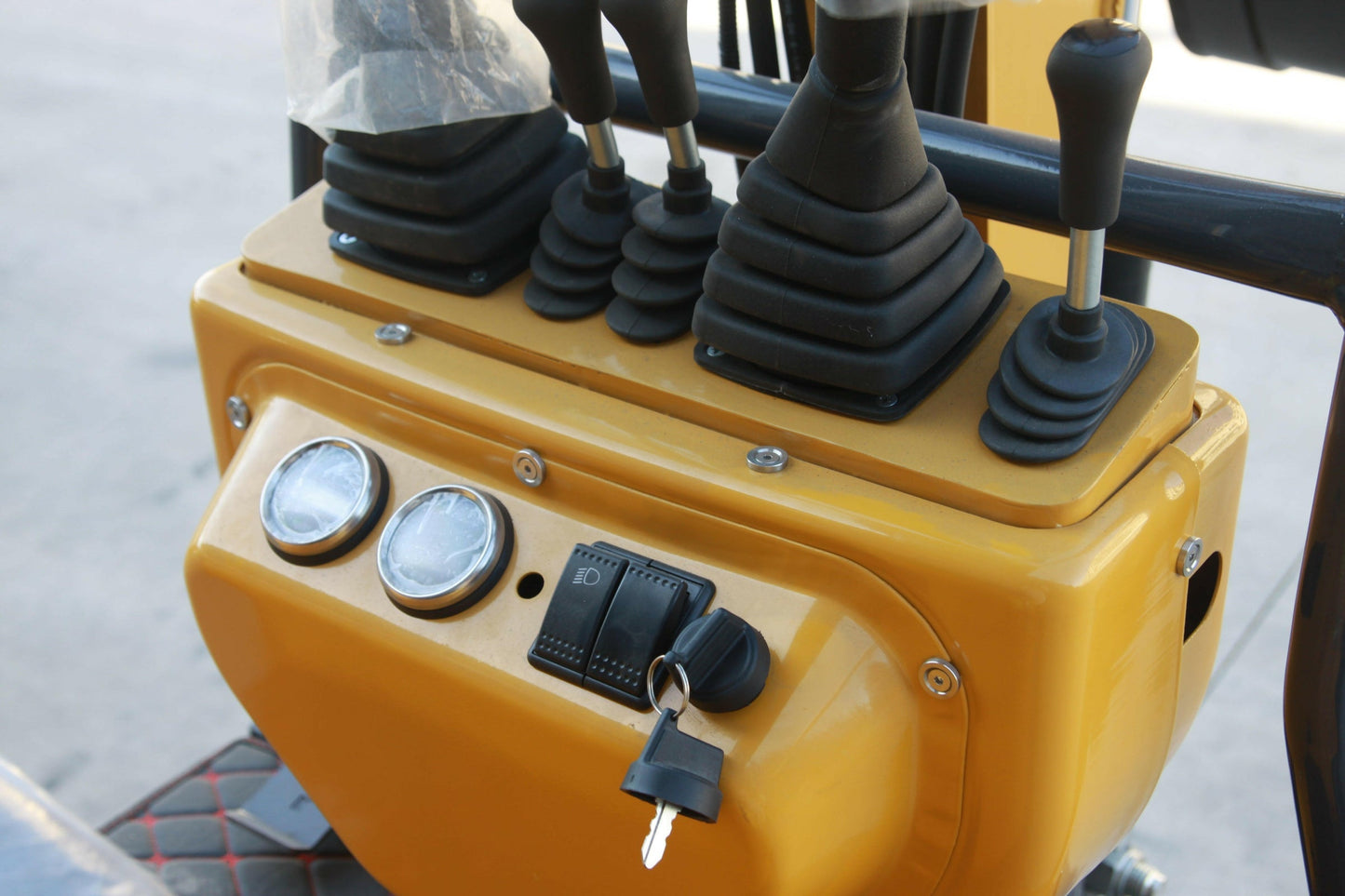

• Foot Pedal

Engine

• Engine Brand: B&S
• Fuel Type: Gasoline
• Model: XR
• Rated Power: 10.5 kW (13.5 HP)
• Displacement: 420 cc
• Fuel Capacity: 6.6 L (1.7 gal)
• Fuel Consumption: 0.5-1.2 L/hr
• Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
• Hydraulic Pressure: 16 MPa (2300 PSI)
• Hydraulic Tank Capacity: 18 L (4.8 gal)
• Traveling Hydraulic Motor Type: BM6-310
• Rotary Hydraulic Motor Type: BM2-250
• Battery: 12V, 45–60Ah
