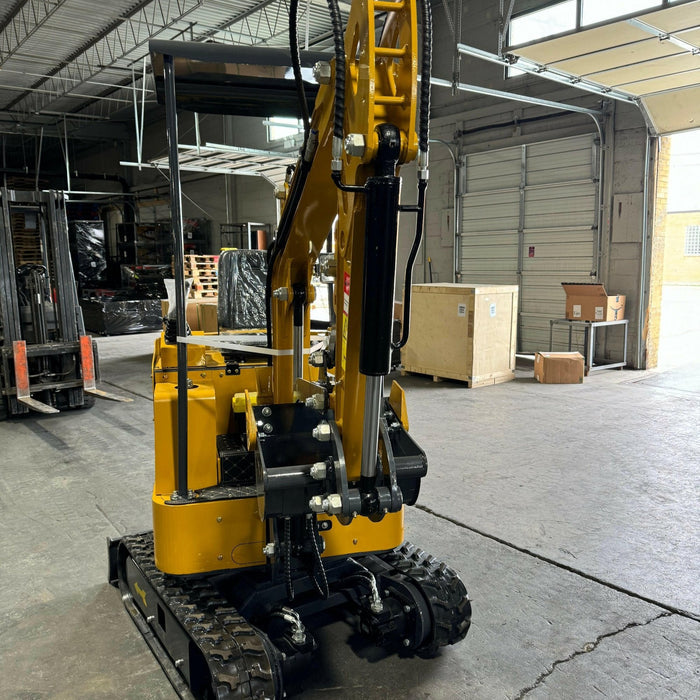

1 ton, 13.5HP RATO Mini Excavator w/ pilot control system | AGT-H15R

The AGT-H15R Mini Excavator is perfect for small to medium-sized projects, offering a compact 1-ton design and a maximum digging depth of 5.41 feet. Ideal for tight spaces like gardens, parks, and orchards, it combines maneuverability with enhanced safety features, including internal hydraulic hoses and rear-opening compartments for easy maintenance.

In Action Video

Manual

Technical Data:

• Operation Weight: 1 Ton
• Engine: RATO Gasoline
• Horse Power: 13.5
• Max Angle: 35 Degree
• Bucket Capacity: 6.6 gal
• Traveling Speed: 0-1.24 mph

Hydraulic System:

• Pressure (Travel/Slewing): 23.5/18 psi
• Motor Types: BM6K-315 (Travel), BM2-315 (Slewing)
• Tank Capacity: Fuel - 1.77 gallons, Hydraulic Oil - 4.76 gallons
• Main Pump Flow Rate: 8-12 gallons/minute

Operating Parameters:

• Max Digging Height: 102.76 inches
• Max Unloading Height: 72.83 inches
• Max Digging Depth: 65 inches
• Max Digging Radius: 112.2 inches
