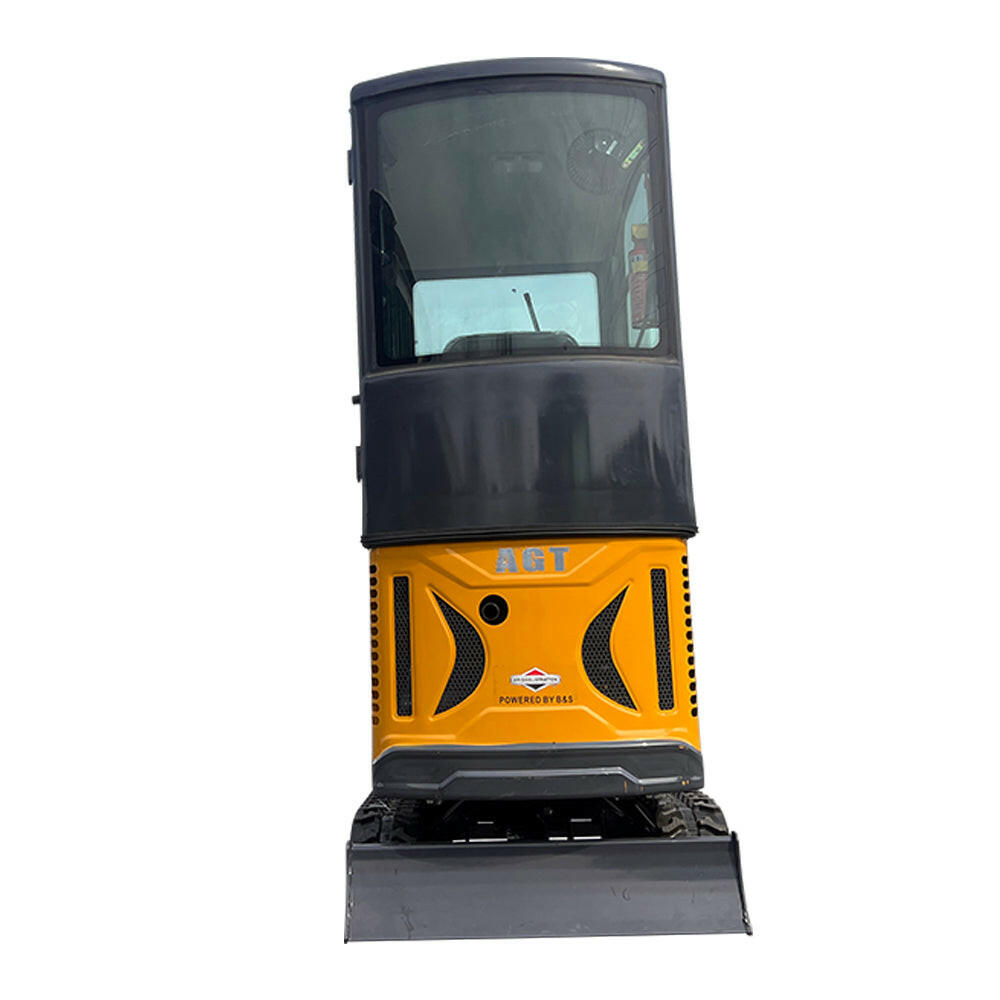

1 Ton, B&S Engine Mini Small Cab Excavator w/ Hydraulic Thumb & Swing Boom | AGT-DM13-C

1 Ton, B&S Engine Mini Small Cab Excavator w/ Hydraulic Thumb & Swing Boom | AGT-DM13-C

$2,970.99
$2,970.99 $8,029.00
SAVE 62% Sold out

⭐️⭐️⭐️⭐️⭐️

BUNDLE & SAVE

1 Ton, B&S Engine Mini Small Cab Excavator w/ Hydraulic Thumb & Swing Boom | AGT-DM13-C

$2,970.99
$2,970.99 $8,029.00
SAVE 62% Sold out

    Get it between - and -.
    The AGT-DM13C is a compact and versatile 1.3-ton mini excavator designed for various excavation tasks.

    Technical Data:

    Engine:

    • Brand: Briggs & Stratton (B&S)
    • Model: 13.5 HP
    • Power Output: 9.8 kW
    • Maximum Speed: 3,600 RPM
    • Cylinders: 1
    • Cooling Method: Fan cooling
    • Engine Oil Capacity: 1.1 liters
    • Fuel Type: Gasoline
    • Fuel Grade: 92#
    • Theoretical Fuel Consumption: 0.5-1.2 liters per hour

    Performance:

    • Operating Weight: 2,150 lbs (975 kg)
    • Maximum Digging Depth: 1,650 mm
    • Maximum Digging Height: 2,400 mm
    • Maximum Digging Radius: 3,080 mm
    • Maximum Climbing Ability: 30°

    Hydraulic System:

    • Main Pump Type/Model: Gear pump/06
    • Main Pump Brand: Tianjin Xingzou
    • Rated Set Pressure: 16 MPa
    • Maximum Flow Rate of Main Pump: 21.6 liters per minute
    • Multi-way Valve: 8 multi-way valves
    • Multi-way Valve Brand: Bei Fang

    Dimensions:

    • Overall Length: 2,738 mm
    • Overall Width: 935 mm
    • Overall Height: 2,209 mm
    • Bulldozer Width/Height: 907 mm / 210 mm

    Undercarriage:

    • Track Type: 7-inch rubber tracks

    Additional Features:

    • Cabin: Enclosed cab (no air conditioning)
    • Boom: Articulating/swing boom with a 30° angle
    • Attachments: Hydraulic thumb installed, 13-inch digging bucket, push blade
    • Auxiliary Hydraulics: Yes

    Specific Data:

    Basic
    Performance
    Parameters    		 Working Weight(kg) 940
    Bucket capacity(m³) 0.03
    Travel speed low/high speed(Km/h) 0-0.2
    Climbing ability(%) 30
    A Maximum Digging Height(mm) 2795
    B Maximum Unloading Height(mm) 1863
    C Maximum Digging Depth(mm) 1684
    E Max. digging radius(mm) 3112
    Side Swing √
    Side Swing Angle (L/R) 30°
    undercarriage expansion ×
    Body J Side Swing Angle (L/R) 30°
    K Overall Width(mm) 935
    L Overall Height(mm) 2209
    Bulldozer Width/Height 907/210
    Engine Engine Brand B&S
    Engine Model 13.5HP
    Max. power(Kw) 9.8
    Max. speed(rpm) 3600
    Cylinders 1
    Cooling method fan cooling
    Engine oil change quantity(L) 1.1
    Fuel Type Gasoline
    Fuel Grade 92#
    Theoretical fuel consumption(L/h) 0.5-1.2
    Hydraulic
    system    		 Main pump type/model gear pumps/06
    Main pump brand (Tianjin Xingzou)
    Rated set pressure(Mpa) 16
    Maximum flow rate of main pump(L/min) 21.6
    Multi-way valve 8 multi-way valves
    Brand of Multi-way valve (Bei Fang)
    Rated Set Pressure(Mpa) 16
    Hydraulic Linear Motor type BM6-310
    Linear Motor Brand (Li Yuan)
    Hydraulic Servo Motor type BM2-250
    Excavator tracks △-Rubber (bandwidth*pitch*number of sections) 180*72*37
    Configuration Cab √
    Roof ×
    Handrail ×
    Thumb Clip √
    Counterweight ×
    Tensioning Forms Mechanical tensioning
    Air Conditioning ×
    Fuel tank Fuel tank(L) 6.6
    Hydraulic oil tan(L) 18
