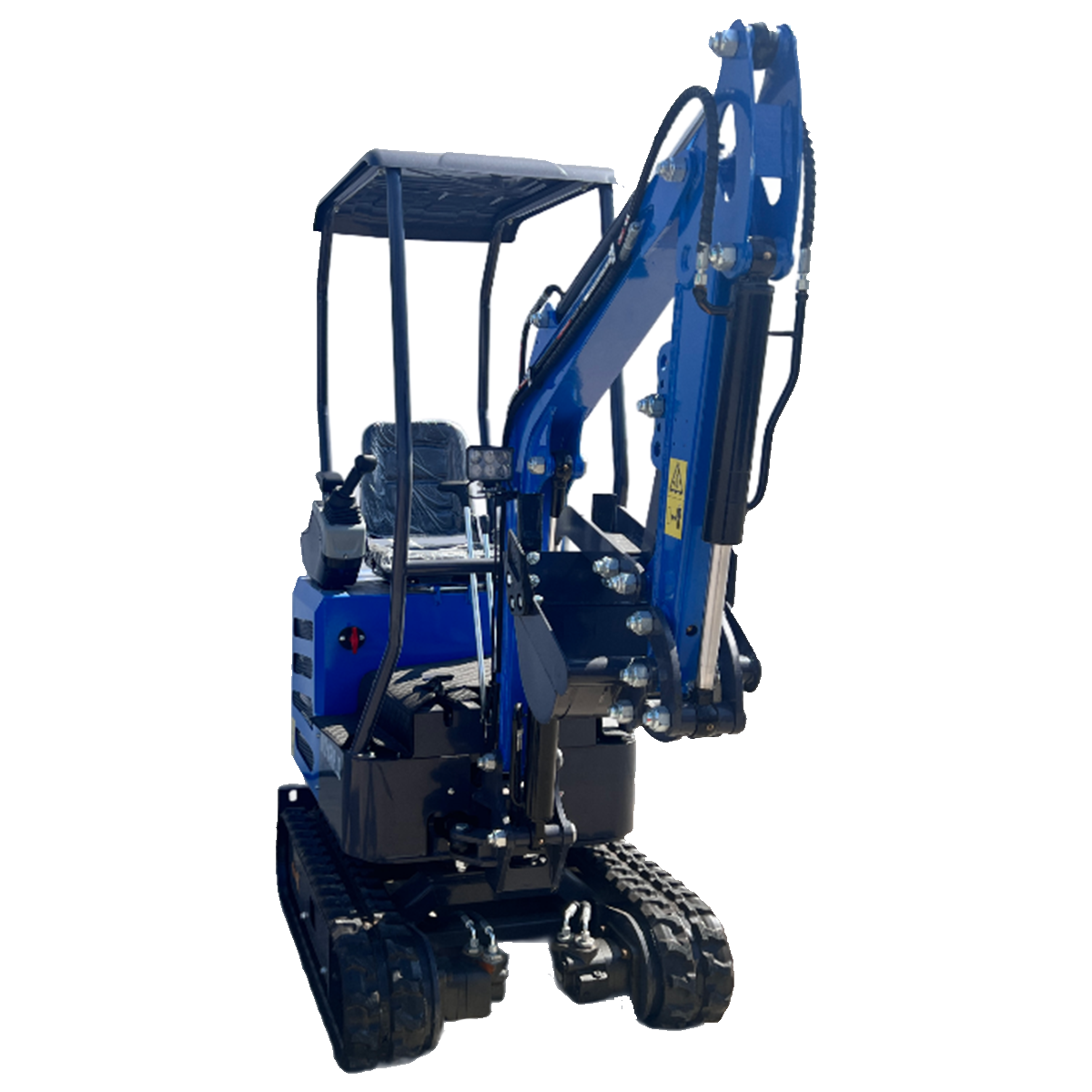

1 Ton, Fuel Injection Engine Mini Excavator w/ Side Swing Boom and Pilot Control | MX12-CRPLUS

The MX12-CRPLUS is a compact crawler mini excavator designed for light construction, landscaping, and utility work. With its efficient engine, hydraulic system, and reinforced structure, it delivers dependable performance while remaining highly maneuverable. Its retractable undercarriage allows access to narrow job sites, making it ideal for urban and residential applications.

Dimension

• Operating Weight: 0.8 Ton (1,600 lbs)
• Overall Length: 2,800 mm (110 in)
• Overall Width: 965 mm (38 in)
• Overall Height: 2,210 mm (87 in)
• Track Size: 180*72*37 (Width*Pitch Length*Links)

Working Range

• Max Digging Depth: 1,760 mm (69 in)
• Max Digging Height: 2,590 mm (102 in)
• Max Dumping Height: 1,790 mm (70.5 in)
• Max Reach at Ground: 2,600 mm (102.5 in)
• Blade Width: 900 mm (35 in)
• Blade Height: 180 mm (7 in)
• Blade Max Lifting Height: 380 mm (15 in)
• Blade Max Drop Depth: 170 mm ( in)

Engine

• Engine Brand: Rato
• Fuel Type: Gasoline
• Model: R420D
• Rated Power: 10.5 kW (13.5 HP)
• Displacement: 420 cc
• Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
• Hydraulic Pressure: 16 MPa (2,320 PSI)
• Hydraulic Tank Capacity: 18 L (3.7 gal)

Features

• Side Swing Boom
• Pilot Control
• Direct Fuel Injection Engine
• LED Work Light
