1 Ton, Kubota Engine Mini Excavator | CFG-DY16

The CFG-DY16 is a compact and versatile mini excavator designed for various construction and landscaping tasks.

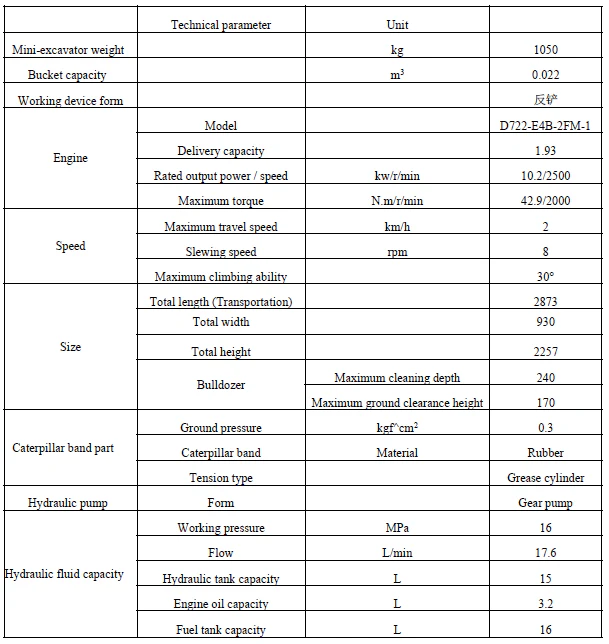

Technical Data:

• Mini-excavator weight: 1050 kg
• Bucket capacity: 0.022 m³
• Working Device: Backhoe

• Model: D722-E4B-2FM-1
• Delivery capacity: 1.93
• Rated output power/speed: 10.2 kW / 2500 r/min
• Maximum torque: 42.9 N·m / 2000 r/min

• Maximum travel speed: 2 km/h
• Slewing speed: 8 rpm
• Maximum climbing ability: 30°

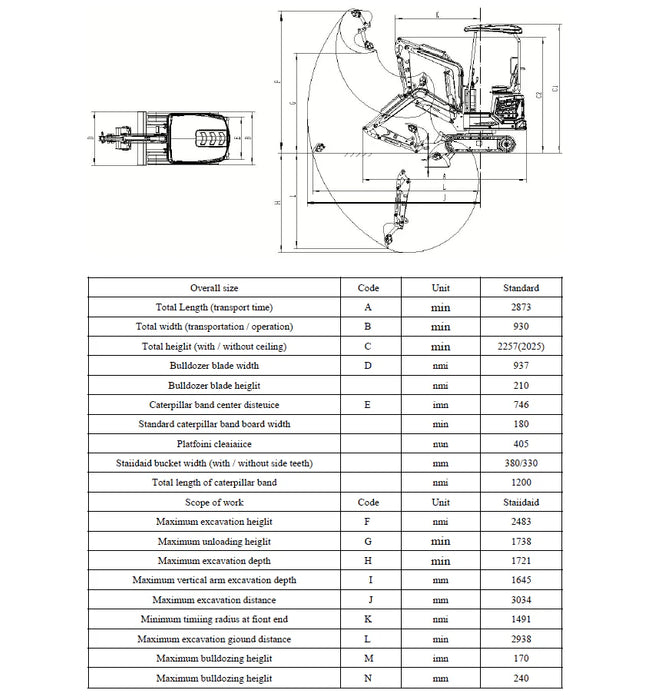

• Total Length (Transportation): 2873 mm
• Total Width: 930 mm
• Total Height (with/without ceiling): 2257 mm / 2025 mm

• Blade Width: 937 mm
• Blade Height: 210 mm
• Maximum bulldozing height: 170 mm
• Maximum bulldozing depth: 240 mm

• Ground pressure: 0.3 kgf/cm²
• Material: Rubber
• Center Distance: 746 mm
• Standard Board Width: 180 mm
• Total Length of Caterpillar Band: 1200 mm
• Tension Type: Grease cylinder

• Pump Type: Gear pump
• Working Pressure: 16 MPa
• Flow Rate: 17.6 L/min

• Hydraulic Tank Capacity: 15 L
• Engine Oil Capacity: 3.5 L
• Fuel Tank Capacity: 16 L

• Maximum Excavation Height: 2483 mm
• Maximum Unloading Height: 1738 mm
• Maximum Excavation Depth: 1721 mm
• Maximum Vertical Arm Excavation Depth: 1645 mm
• Maximum Excavation Distance: 3034 mm
• Minimum Turning Radius at Front End: 1941 mm
• Maximum Excavation Ground Distance: 2938 mm
