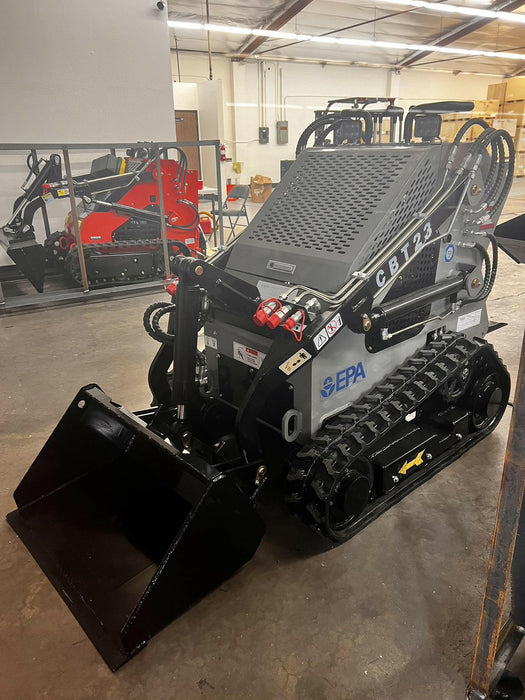

1 Ton, Mini Stand On Skid Loading Mini Crawler | CBT23

The CBT23 is a compact 1-ton stand-on skid steer loader powered by a 23 HP Briggs & Stratton engine. It delivers 484 lb lift capacity, 63-in lift height, 2.5 mph speed, and robust hydraulics—perfect for tight-access jobs.

Basic Performance:

• Rated Loading Capacity: 484 lb
• Overall Weight: 2094 lb

Fluid Capacities:

• Fuel Tank Capacity: 6.83 gallons
• Hydraulic Oil Tank Capacity: 8.72 gallons

Engine:

• Model: B&S XR
• Rated Power: 23
• Maximum Torque: 34.39 lb-ft
• Number of Cylinders: 2
• Emission Standard: EPA II

Operating Range:

• Maximum Unloading Height: 63.46 inches
• Unloading Distance (at maximum height): 24.05 inches
• Maximum Height of Bucket Pivot Pin: 91.77 inches
• Unloading Angle at Maximum Height: 23°
• Bucket Tilt Angle at Full Height: 105°
• Bucket Tilt Angle on Ground: 18°

Travel Performance:

• Maximum Travel Speed: 2.48 mph
• Track Width: 40.55 inches
• Climbing Ability: 25%

Hydraulic System:

• Main Pump Type: Gear Pump
• System Safety Pressure: 22 MPa
• Maximum Flow of Main Pump: 75.6 L/min
