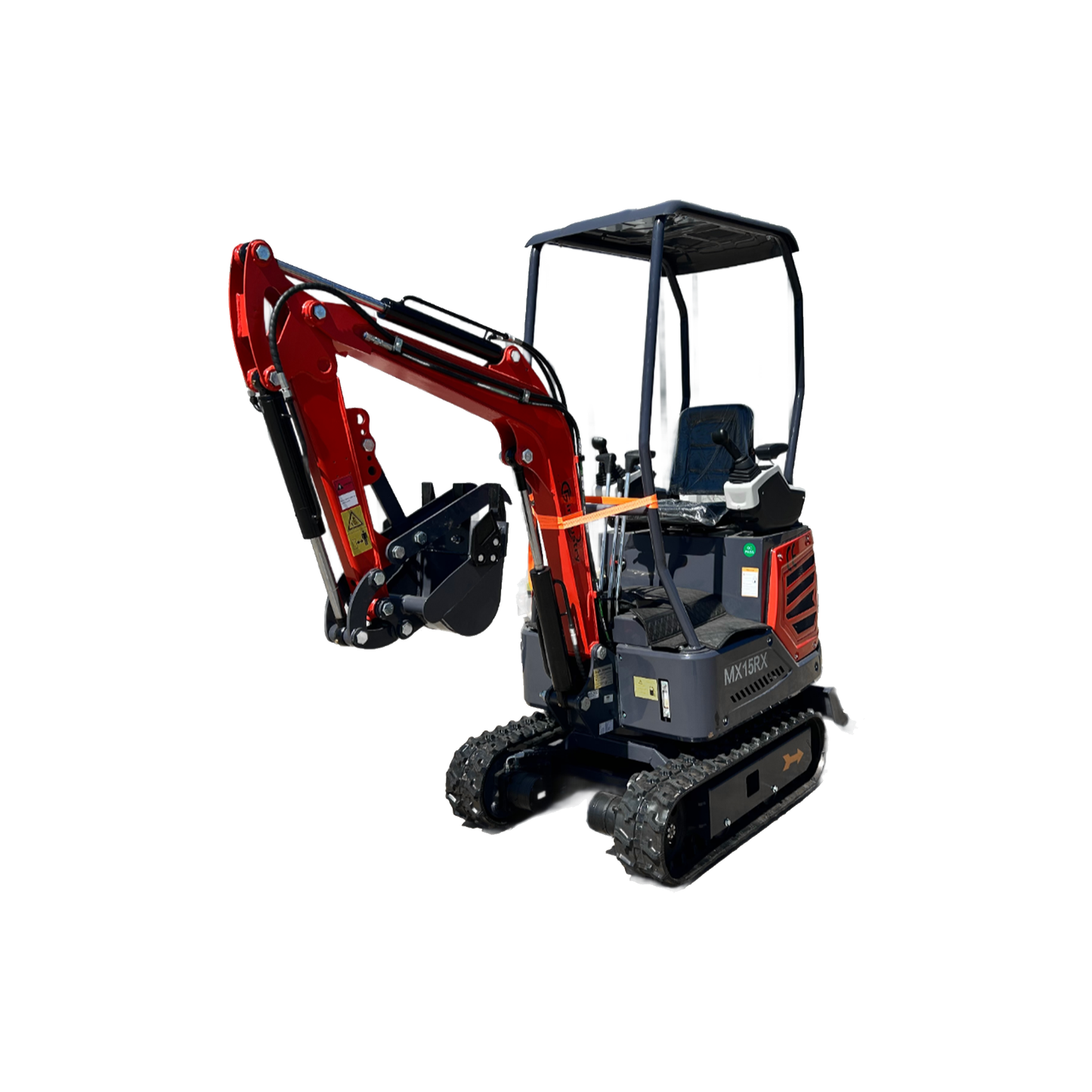

1 Ton, RATO Engine Mini Excavator | MX15RX

The AGT‑MX15RX is a professional 1‑ton class mini excavator powered by a 13.5 HP RATO gasoline engine (R420D), featuring rubber tracks, dual pilot controls, manual thumb, and integrated auxiliary hydraulics. With a 42‑in wide blade and a compact design, it delivers versatile digging, trenching, and grading performance in tight workspaces.

Dimension

• Operating Weight: 0.9 Ton (2070 lbs)
• Overall Length: 3,200 mm (126 in)
• Overall Width: 936 mm (37 in)
• Overall Height: 2,210 mm (87 in)
• Track Size: 180*72*37 (Width*Pitch Length*Links)

Working Range

• Max Digging Depth: 1,769 mm (69.5 in)
• Max Digging Height: 2,583 mm (101.5 in)
• Max Dumping Height: 1,850 mm (72.5 in)
• Max Reach at Ground: 3,040 mm (119.7 in)
• Blade Width: 1,066 mm (42 in)
• Blade Height: 180 mm (7 in)

Engine

• Engine Brand: Rato
• Fuel Type: Gasoline
• Model: R420D
• Rated Power: 10 kW (13.5 HP)
• Displacement: 420 cc
• Fuel Capacity: 6.6 L (1.7 gal)
• Fuel Consumption: 0.5-1.2 L/hr
• Hydraulic Tank Capacity: 23 L ( gal)

Features

• Pilot Control
• Auxiliary Hydraulics
