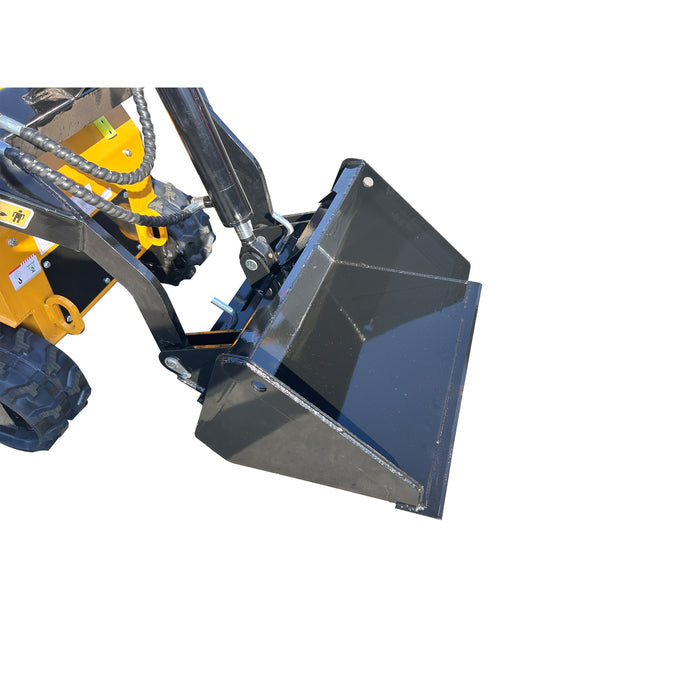

1 Ton, RATO Engine Mini Skid Steer | MX-MRT14

The MX-MRT14 is a lightweight and compact loader designed for efficient operation in small construction sites, farms, and landscaping projects. Despite its compact profile, it delivers reliable performance with a 700 kg working weight and a maximum lifting force of 200 kg, making it ideal for light-duty material handling and confined workspaces.

Equipped with a Rato R420D gasoline engine, this model produces 13.5 HP and features fan cooling for consistent operation. Its 0.1 m³ bucket capacity, 4 km/h travel speed, and 23° bucket discharge angle offer excellent control and versatility for various loading tasks.

Technical Data

• Operating Weight: 700 kg ≈ 1,543 lbs
• Bucket Capacity: 0.1 m³ ≈ 0.13 cubic yards
• Travel Speed: Up to 4 km/h ≈ 2.49 mph
• Max Lifting Force: 200 kg ≈ 440.9 lbs
• Max Pin Height: 1967 mm ≈ 6.46 feet
• Loading Distance at Max Height: 661 mm ≈ 2.17 feet
• Wheelbase: 905 mm ≈ 2.97 feet
• Ground Clearance: 163 mm ≈ 6.42 inches
• Bucket Discharge Angle: 23°

Dimension

• Operating Weight: 0.7 Ton (1,400 lb)
• Overall Length: 2,432 mm (96 in)
• Overall Width: 904 mm (35.5 in)
• Overall Height: 1,364 mm (53.5 in)
• Bucket Width: 1,120 mm (44 in)
• Bucket Capacity: 100 L (26.5 gal)
• Tracks Size: 180\*72\*37 (W\*P\*L)

Working Range

• Max Working Height: 2,285 mm (90 in)
• Max Unloading Height: 1,575 mm (62 in)
• Max Lifting Force: 200 kg (441 lb)
• Travel Speed: 4 km/h (2.5 mph)

Features

• LED Lights

Engine

• Brand / Model: Rato R420D
• Fuel Type: Gasoline
• Max Power: 10 kW (13.5 HP)
• Displacement: 420 cc
• Fuel Tank: 6.6 L (1.7 gal)
• Hydraulic Tank Capacity: 33 L (8.7 gal)
