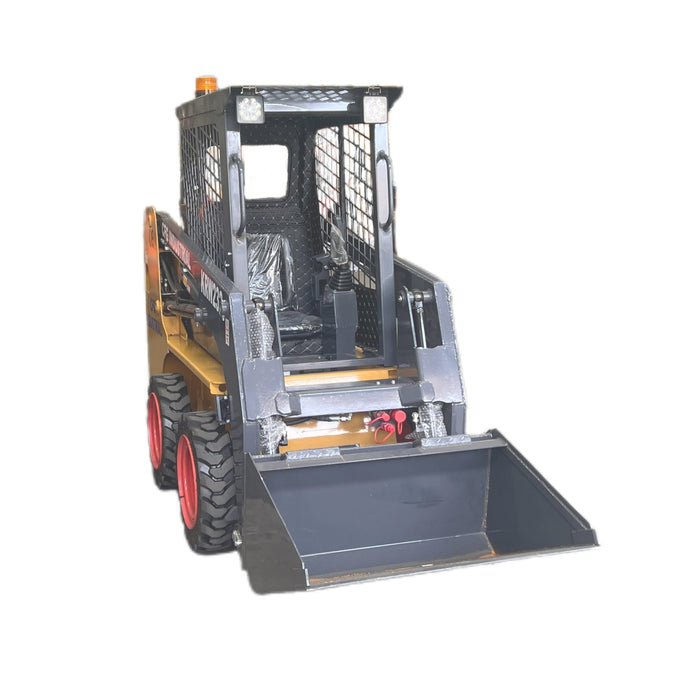

1.25 Ton, RATO Engine Mini Skid Steer | KRW232

1.25 Ton, RATO Engine Mini Skid Steer | KRW232

$4,809.99
$4,809.99 $13,000.00
SAVE 63% Sold out

⭐️⭐️⭐️⭐️⭐️

BUNDLE & SAVE

1.25 Ton, RATO Engine Mini Skid Steer | KRW232

$4,809.99
$4,809.99 $13,000.00
SAVE 63% Sold out

    Get it between - and -.
    The JK-KRW232 is a compact yet powerful loader designed for demanding tasks on farms, construction sites, and industrial yards. With a working weight of 1100 kg and a strong 380 kg lifting force, this machine offers reliable performance in a maneuverable package.

    It features a robust Rato air-cooled gasoline engine delivering 33 HP, supported by a high-capacity hydraulic system with a 70 L/min flow rate—ideal for fast cycle times and efficient operation. The JK-KRW232 also boasts a tight 900 mm width and a 40° bucket discharge angle, making it perfect for tight-access tasks and quick loading jobs.

    Technical Data:

    • Operating Weight: 1100 kg

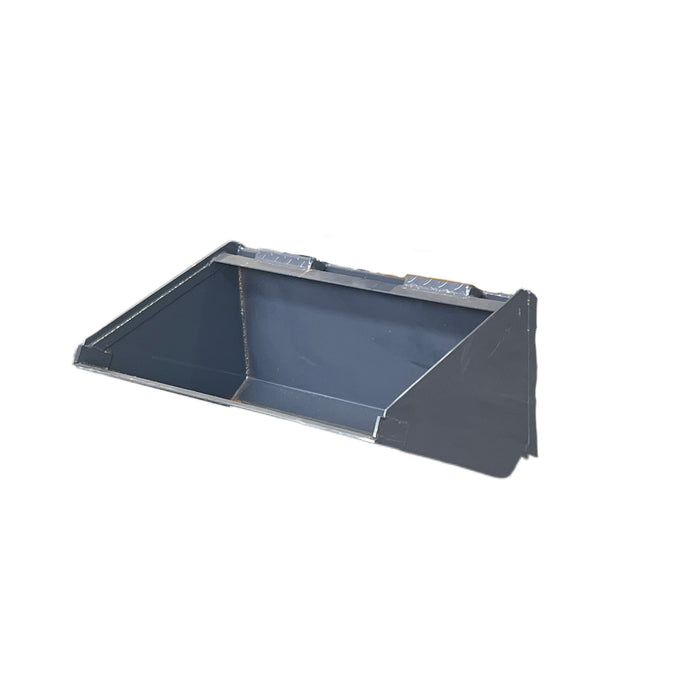

    • Bucket Capacity: 0.16 m³
    • Travel Speed: Up to 4.5 km/h
    • Max Lifting Force: 380 kg
    • Max Working Height: 3590 mm
    • Unloading Height: 1820 mm
    • Bucket Discharge Angle: 40°
    • Wheelbase: 801 mm

    Engine:

    • Rato, Air-cooled
    • Max Horsepower: 33 HP
    • Fuel Type: 92# Gasoline
    • Fuel Tank Capacity: 40 L
    • Theoretical Fuel Consumption: 10 L/h
    • Hydraulic Oil Tank: 40 L

    Hydraulics:

    • Main Pump: PGP532B62
    • Max Flow Rate: 70 L/min

    Dimensions:

    • Overall Length (with bucket): 2580 mm
    • Overall Length (without bucket): 1945 mm
    • Overall Width: 900 mm
    • Overall Height: 1820 mm
    • Tires: 570*16
