1.8 Ton, Kubota Engine Mini Excavator | KU18EC

Technical Data:

• Operation Weight: 1.8 Ton
• Engine: Kubota Engine
• Horse Power: 13.5

Specific Data:

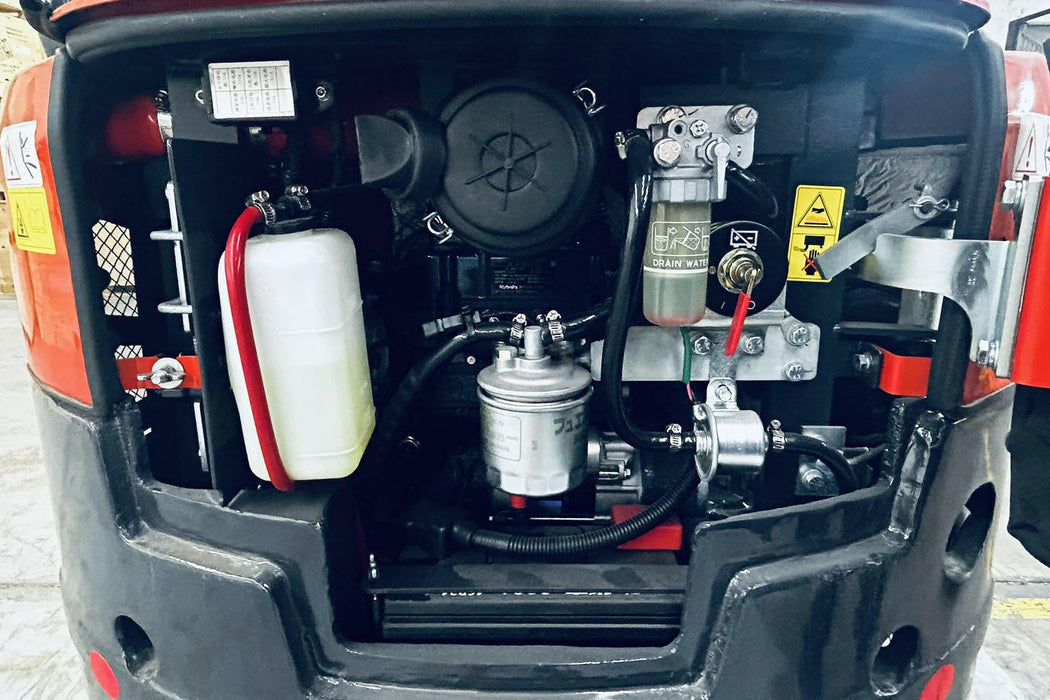

• Engine:
• Brand: Kubota
• Horsepower: 13.5 HP
• Cooling Method: Liquid Cooling
• Number of Cylinders: 3
• Maximum Speed: 3,600 RPM
• Fuel Type: Diesel

Dimensions:

• Total Length: 2,925 mm
• Overall Width: 958 mm
• Total Height: 2,422 mm

Operating Specifications:

• Operating Weight: 1.8 tons
• Bucket Capacity: 0.04 m³
• Maximum Digging Depth: 2,120 mm
• Maximum Digging Height: 3,310 mm
• Maximum Unloading Height: 2,370 mm
• Maximum Digging Radius: 3,640 mm
• Climbing Ability: 30%
• Swing Speed: 9 RPM
• Side Swing Angle (Left/Right): 60°/50°

Hydraulic System:

• Rated Set Pressure: 25 MPa
• Main Pump Type: GP510803
• Maximum Flow Rate of Main Pump: 21.6 L/min
• Multi-Circuit Valve: 4 mechanical + 4 hydraulic
• Rotary Hydraulic Motor Type: BM2-315
• Traveling Hydraulic Motor Type: BM6-315

Capacities:

• Tensioning Form: Hydraulic Tensioning
